60 GHz wireless modules for machine communication

Compact, low-power modules delivering multi-gigabit wireless links for robotics, drones, and autonomous systems

60 GHz Module Capabilities

Multi-gigabit wireless, zero cables

Wireless HDMI®

1080p/60Hz

maximum video resolution

Wireless HDMI® 4K

1080p/120Hz

maximum video resolution

4K30

used with SiI9396 HDMI bridge device

Sub-5ms video latency for real-time control

IEEE 802.11ad compatible

Multi-channel data streams

Integrated command interface

Ideal for sensor fusion and telemetry

Hardware-level security

Wireless HDMI® Module

60 GHz TRANSMITTER MODULE

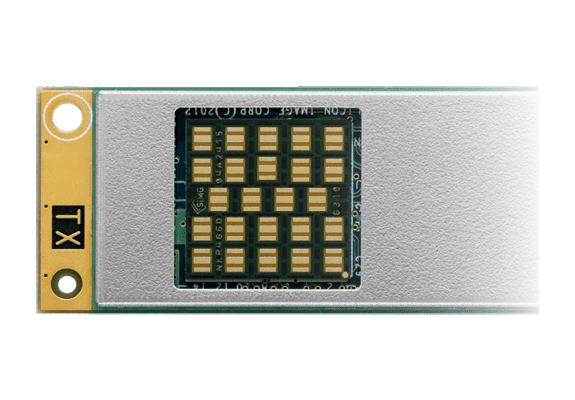

MOD6320-T

The MOD6320-T is a 60 GHz transmitter module built with SiBEAM® technology for compact integration into machines, robots, and autonomous platforms. The module delivers multi-gigabit wireless video and data links, replacing physical cables and tethers while maintaining signal integrity and reliability.

Specifications

Download Specification

Industry-Standard Compliance

WirelessHD® Specification v1.1 HDMI 1.4b / 2.0 HDCP 1.4 / 2.2

Digital Input/Output

HDMI USB for debug I2C for advanced control

Module Dimensions

74 mm x 17 mm x 5.4 mm Cable length 30 mm

Wireless Range

Up to 10 m in-room

Operating Frequency

59.40 GHz to 63.72 GHz Channels 2 and 3

Operating Temperature

0 to 60 °C ambient temperature

Modular Regulatory Approval

IC (Canada) SRRC (China) ETSI (EU) KCC (Korea) TELEC (Japan) FCC (USA)

60 GHz RECEIVER MODULE

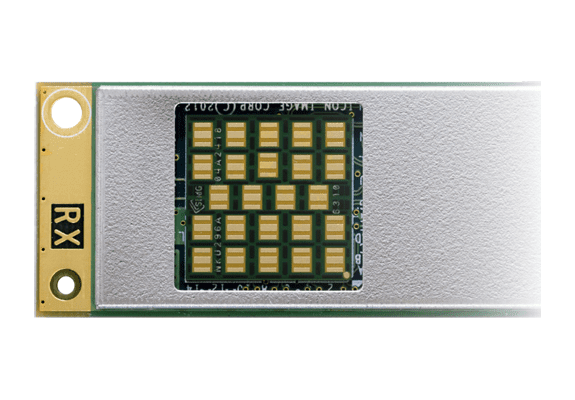

MOD6321-R

The MOD6321-R is a 60 GHz receiver module built with SiBEAM® technology for integration into edge compute units, ground stations, and autonomous platforms. The module receives multi-gigabit wireless video and sensor data, enabling cable-free machine communication with full signal quality.

Specifications

Download Specification

Industry-Standard Compliance

WirelessHD® Specification v1.1 HDMI 1.4b / 2.0 HDCP 1.4 / 2.2

Digital Input/Output

HDMI USB for debug I2C for advanced control

Module Dimensions

74 mm x 17 mm x 5.4 mm Cable length 30 mm

Wireless Range

Up to 10 m in-room

Operating Frequency

59.40 GHz to 63.72 GHz Channels 2 and 3

Operating Temperature

0 to 60 °C ambient temperature

Modular Regulatory Approval

IC (Canada) SRRC (China) ETSI (EU) KCC (Korea) TELEC (Japan) FCC (USA)

Wireless HDMI® Chipset

SiI6320 Wireless HDMI® TRANMITTER NETWORK PROCESSOR

Sil6320

The SiI6320 network processor is a WirelessHD™ 1.1 compatible network processor that provides a complete wireless video-area network (WVAN) solution. The SiI6320 processor, when combined with the SiI6310 RF transceiver, provides all of the functionality needed to enable a complete wireless A/V network, from joining an existing network to joining a WVAN as a station. Full support for AVC commands, compatible with HDMI-CEC, is provided.

Specifications and features

HRP channels 2 and 3 at up to 4.0 Gb/s (mode index 0, 1, 2, 7, 8, and 9)

MRP mode index 0, 1, 7, and 8 transmission at up to 1.2 Gb/s

WirelessHD compatible

Receives back-channel audio over LRP

Small form factor 153 pad 13 x 13 mm aQFN package

High quality transmission at up to 10 ^-9 BER

Hollywood-approved content protection using HDCP encryption

Embedded CPU manages WirelessHD WVAN protocol Software compatible with Silicon Image Wireless SDK

Omni and directional LRP modes at up to 10.0 Mb/s

Support for video resolutions from 480i/576i to 1080p/60 Hz

Integrated HDMI/DVI interface

Support for 2–8 channel audio up to 192 kHz

Full support of AVC commands

WirelessHD Coordinator capable

Integrated HDMI 1.4b compatible Audio Return Channel

Lossless video coding and gated transfer for improved performance and QoS

SiI6310 Wireless HD® RF Transceiver

Sil6310

The SiI6310 WirelessHD RF Transceiver supports the WirelessHD 1.1 Standard. When combined with the SiI6320 and SiI6321 network processors, it provides a complete solution for enabling a Wireless Video-Audio Network (WVAN). No system firmware support is needed for the SiI6310 RF transceiver because the SiI6320/21 processors manage all aspects of the WirelessHD protocol, including the beamsteering algorithms. Innovative micro array antenna technology simplifies the RF design by embedding the antenna array in the device package.

Specifications and features

4 Gb/s data transfer rate

High efficiency PA and LNA components

No routing of 60 GHz signals to PCB board

On-package antenna eliminates the need for RF antenna design

Low-pin count interface to the SiI6320 and SiI6321 network processors

Supports omni and directional LRP modes at up to 10 Mb/s

WirelessHD 1.1 Specification Compliant

HRP Channel index 2 or 3 capable

Embedded beam forming technology

Transmits uncompressed Deep Color 1080p/60 Hz 4:4:4 36 bit video

Low cost, 12 mm x 12 mm organic flip chip 76 ball BGA package with embedded antenna array

Supports MRP and five LRP channels per HRP channel

SiI6320 Wireless HD® RECEIVER NETWORK PROCESSOR

Sil6321

The SiI6321 WirelessHD Receiver Network Processor is a third generation, WirelessHD 1.1-compatible, network processor that provides a complete wireless video area network (WVAN) solution. The SiI6321 processor, when combined with the SiI6310 RF transceiver, provides all of the functionality needed to enable a complete wireless A/V network, including starting its own WVAN as a coordinator. Full support for AVC commands, compatible with HDMI CEC, is Provided.

Specifications and features

HRP channels 2 and 3 at up to 4.0 Gb/s (mode index 0, 1, 2, 7, 8, and 9)

MRP mode index 0, 1, 7, 8 reception at up to 1.2 Gb/s for uncompressed or coded A/V

WirelessHD1.1 compatible

Transmits back-channel audio over LRP

Omni and directional LRP modes at up to 10.0 Mb/s

High quality transmission at up to 10 ^-9 BER

Hollywood-approved content protection using HDCP encryption

HDCP keys pre-programmed for highest level of protection and ease of design

Embedded CPU manages WirelessHD protocol, thereby simplifying host interaction; handles all aspects of creating, joining, or leaving WVAN

Small form factor 154 pad 14 mm x 14 mm advanced QFN (aQFN) package

Support for video resolutions from 480i/576i to 1080p/60 Hz

Integrated HDMI/DVI interface

Support for 2–8 channel audio up to 32-192 kHz

Full support of AVC commands

WirelessHD Coordinator capable

Integrated HDMI 1.4b compatible Audio Return Channel

Lossless compression and full-frame buffer for improved wireless performance

SiI6312 Wireless HD® RF RECEIVER

Sil6312

The SiI6312 WirelessHD RF Receiver supports the WirelessHD 1.1 Standard. When combined with the SiI6321 network processor, it provides a complete A/V Receiver solution for enabling a Wireless Videoaudio Network (WVAN). Simultaneous orthogonal antenna elements are oriented to provide optimum RF link integrity with WirelessHD transmitters regardless of planar orientation.
